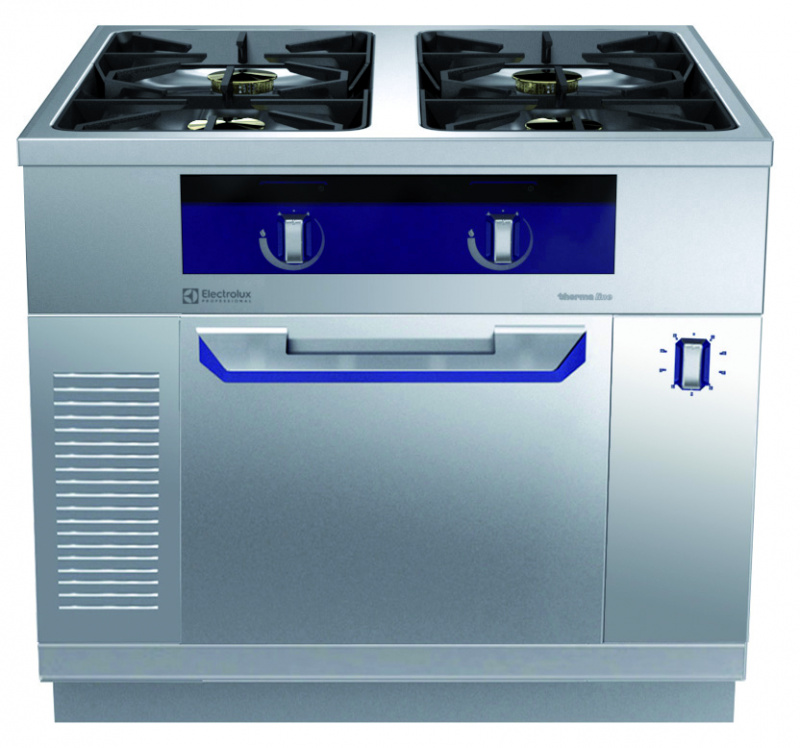

Electrolux Professional MCQJECJCVO GAS TOP,4B,TG,STA.OV.G,2S,1000X900X700H (Code 593346)
4-Burner gas Top on passthrough gas static Oven, two-side operated, town gas - Hong Kong, Sweden. Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth. THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service. Oven chamber to have 2 levels of runners to accommodate 2/1 GN trays and ribbed enamelled steel base plate. The upper heating element of the oven can also be used for grilling. Manual control of humidity in cooking chamber. Electronic sensor for precise temperature control.
Buy Electrolux Professional MCQJECJCVO Modular Cooking Range Line thermaline 90 - 4-Burner Gas Top on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas) (Code 593346) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MCQJECJCVO
- Weight: 173 kg
- Net Weight: 1000 mm
- Net Depth: 900 mm
- Net Height: 700 mm
- Data Sheet: thermaline 90 - 4-Burner Gas Top on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas)
- Brochure: thermaline M2M - Made to Measure
- Range Overview: thermaline Modular 90
- CAD Drawings: 593346
- Spare Parts Catalogue: 593346
- BIM/Revit: 593346
Electrolux Professional MCQJECJCVO 4-Burner Gas Top on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas) (Code 593346)
Island layouts need equipment that lets cooks work from either side without one person blocking another, and that's the point of the Electrolux Professional MCQJECJCVO 4-Burner Gas Top on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas) (Code 593346). Four patented Flower Flame burners sit on a passthrough gas oven, both accessible from front and back, running on town gas for kitchens tied to that supply.
Each burner adjusts its triple-ring flame to match the pan set on it, so a small saucepan and a wide sauté pan both get combustion tuned to their footprint instead of one setting for everything. Flame failure devices shut gas to a burner the instant it goes out, and the oven below runs a manual humidity control alongside 2/1 GN runners on two levels, with the upper element doubling for grilling. Long center fins on the cast-iron pan supports mean the whole line, from the smallest pot to the largest stockpot, moves and rests without wobble.
Key features
- 4 gas burners, patented Flower Flame design (EP2708813B1);
- Flame failure device and thermocouple safety valve on each burner;
- Manual gas valves for precise flame intensity control;
- Large cast-iron pan supports with long center fins;
- Deep flat spillage tray with rounded corners and drain hole;
- Static gas oven below, up to 300 °C;
- Oven chamber with 2 runner levels for 2/1 GN trays;
- Manual oven shut-off valve, 40 mm insulated oven door;
- Upper oven element usable for grilling;
- Passthrough, two-side operated configuration;
- 2 mm AISI 304 stainless steel top, DIN 18860-2 construction;
- THERMODUL connection system for seamless joins between units;
- IPX5 water resistance rating.
Electrolux Professional MCQJECJCVO 4-Burner Gas Top on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas) (Code 593346) Price
Maran Projekt GmbH sources the Electrolux Professional MCQJECJCVO 4-Burner Gas Top on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas) (Code 593346) price for restaurants and hotel kitchens building an island line, with worldwide shipping arranged for every order.
With more than 25 years as an authorized Electrolux Professional dealer and over 1,500 clients spread across six continents, we know the town gas variants well enough to flag compatibility questions before a purchase, not after. Reach us in English or German, and ask about the free equipment manual we send with every quote.
