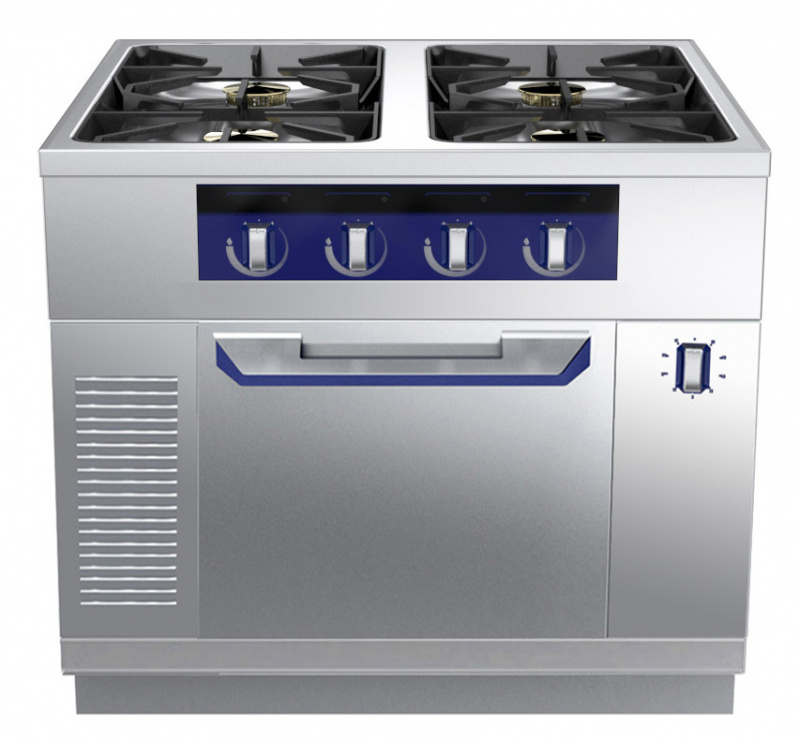

Electrolux Professional MCQIEAJCVO GAS TOP,4B,TG,STA.OV.G,1S,1000X900X700H (Code 593348)
4-Burner gas Top on gas static Oven, one-side operated, town gas - Hong Kong, Sweden. Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth. THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service. Oven chamber to have 2 levels of runners to accommodate 2/1 GN trays and ribbed enamelled steel base plate. The upper heating element of the oven can also be used for grilling. Manual control of humidity in cooking chamber. Electronic sensor for precise temperature control.
Buy Electrolux Professional MCQIEAJCVO Modular Cooking Range Line thermaline 90 - 4-Burner Gas Top on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593348) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MCQIEAJCVO
- Weight: 173 kg
- Net Weight: 1000 mm
- Net Depth: 900 mm
- Net Height: 700 mm
- Data Sheet: thermaline 90 - 4-Burner Gas Top on Static Gas Oven, 1 Side, H=700 (Town Gas)
- Brochure: thermaline M2M - Made to Measure
- Range Overview: thermaline Modular 90
- CAD Drawings: 593348
- Spare Parts Catalogue: 593348
- BIM/Revit: 593348
Electrolux Professional MCQIEAJCVO 4-Burner Gas Top on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593348)
Line up several cooking modules in a row and every unit in between doesn't need its own backsplash, just a clean joint to the next one. The Electrolux Professional MCQIEAJCVO 4-Burner Gas Top on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593348) is built for exactly that middle-of-the-line position, a plain-top four-burner unit on town gas that connects flush on both sides via THERMODUL joints.
Its four burners run the same patented triple-ring Flower Flame system found across the range, sizing the flame to the pan on top of it and cutting fuel instantly through a flame failure device if the flame ever goes out. The static oven beneath handles 2/1 GN trays across two runner levels, holds up to 300 °C, and lets the cook switch the upper element to grilling mode without touching the main burners above. Cast-iron pan supports with long center fins carry everything from a single saucepan to a full brigade's worth of stockpots.
Main Features
- 4 gas burners, patented Flower Flame design (EP2708813B1);
- Flame failure device and thermocouple safety valve on each burner;
- Manual gas valves for precise flame intensity control;
- Large cast-iron pan supports with long center fins;
- Deep flat spillage tray with rounded corners and drain hole;
- Static gas oven below, up to 300 °C;
- Oven chamber with 2 runner levels for 2/1 GN trays;
- Manual oven shut-off valve, 40 mm insulated oven door;
- Upper oven element usable for grilling;
- 2 mm AISI 304 stainless steel top, DIN 18860-2 construction;
- THERMODUL connection system for seamless joins between units;
- IPX5 water resistance rating.
Electrolux Professional MCQIEAJCVO 4-Burner Gas Top on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593348) Price
Maran Projekt GmbH sets a competitive Electrolux Professional MCQIEAJCVO 4-Burner Gas Top on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593348) price for kitchens building out a full cooking line, and shipping goes to any country you need.
Twenty-five years selling nothing but Electrolux Professional equipment means we can spot which town gas configuration fits your existing line before you commit to an order. Get in touch in English or German, and we'll include the equipment manual free of charge with your quote.
