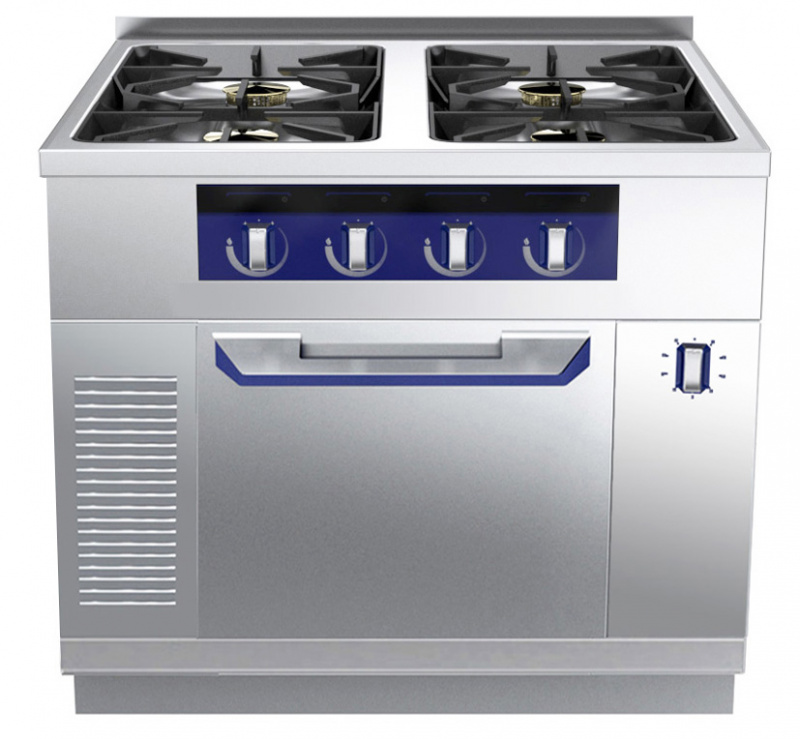

Electrolux Professional MCQIEBJCVO GAS TOP,4B,TG,STA.OV.G,1S,BS,1000X900X7 (Code 593349)
4-Burner gas Top on gas static Oven, one-side operated with backsplash, town gas - Hong Kong, Sweden. Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth. THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service. Oven chamber to have 2 levels of runners to accommodate 2/1 GN trays and ribbed enamelled steel base plate. The upper heating element of the oven can also be used for grilling. Manual control of humidity in cooking chamber. Electronic sensor for precise temperature control.
Buy Electrolux Professional MCQIEBJCVO Modular Cooking Range Line thermaline 90 - 4-Burner Gas Top on Static Gas Oven, 1 Side with Backsplash, H=700 (Town Gas) (Code 593349) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MCQIEBJCVO
- Weight: 173 kg
- Net Weight: 1000 mm
- Net Depth: 900 mm
- Net Height: 700 mm
- Data Sheet: thermaline 90 - 4-Burner Gas Top on Static Gas Oven, 1 Side with Backsplash, H=700 (Town Gas)
- Brochure: thermaline M2M - Made to Measure
- Range Overview: thermaline Modular 90
- CAD Drawings: 593349
- Spare Parts Catalogue: 593349
- BIM/Revit: 593349
Electrolux Professional MCQIEBJCVO 4-Burner Gas Top on Static Gas Oven, 1 Side with Backsplash, H=700 (Town Gas) (Code 593349)
Push a range against a wall and the wall becomes a splash zone unless the equipment already accounts for it. The Electrolux Professional MCQIEBJCVO 4-Burner Gas Top on Static Gas Oven, 1 Side with Backsplash, H=700 (Town Gas) (Code 593349) builds that protection in, pairing a four-burner town gas top with an integrated backsplash and a static oven underneath, sized for a standard against-the-wall installation.
The four burners use patented triple-ring Flower Flame technology that adapts combustion to whatever pan sits on it, backed by a flame failure device on every burner so a blown-out flame cuts gas immediately rather than leaking it. Below, the gas oven runs up to 300 °C with 2/1 GN capacity on two runner levels and manual humidity control, and the upper element switches over for grilling when the menu calls for it. Long-fin cast-iron pan supports keep everything from a small saucepan to a full stockpot sitting level and steady.
Features
- 4 gas burners, patented Flower Flame design (EP2708813B1);
- Flame failure device and thermocouple safety valve on each burner;
- Manual gas valves for precise flame intensity control;
- Integrated backsplash for against-the-wall installation;
- Large cast-iron pan supports with long center fins;
- Deep flat spillage tray with rounded corners and drain hole;
- Static gas oven below, up to 300 °C;
- Oven chamber with 2 runner levels for 2/1 GN trays;
- Manual oven shut-off valve, 40 mm insulated oven door;
- Upper oven element usable for grilling;
- 2 mm AISI 304 stainless steel top, DIN 18860-2 construction;
- THERMODUL connection system for seamless joins between units;
- IPX5 water resistance rating.
Electrolux Professional MCQIEBJCVO 4-Burner Gas Top on Static Gas Oven, 1 Side with Backsplash, H=700 (Town Gas) (Code 593349) Price
Maran Projekt GmbH keeps the Electrolux Professional MCQIEBJCVO 4-Burner Gas Top on Static Gas Oven, 1 Side with Backsplash, H=700 (Town Gas) (Code 593349) price competitive for kitchens fitting a range along a back wall, and we arrange delivery to any address worldwide.
Our consultants have sold Electrolux Professional equipment for over 25 years and speak to backsplash versus open-top fitment decisions daily, in English, German or another language you request. Ask for the free equipment manual with your quote and we'll send it straight away.
