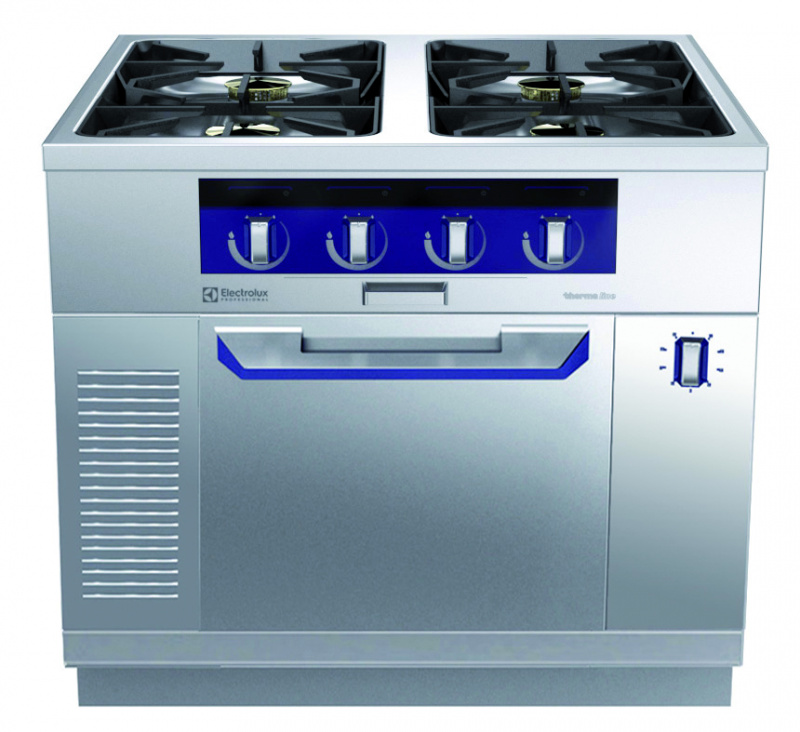

Electrolux Professional MCQMEAJCVO GAS TOP,4B,TG,ECO,STA.OV.G,1S,1000X900X7 (Code 593350)
4-Burner gas Top on gas static Oven, ecoflam, one-side operated, town gas - Hong Kong, Sweden. Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth. THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service. Oven chamber to have 2 levels of runners to accommodate 2/1 GN trays and ribbed enamelled steel base plate. The upper heating element of the oven can also be used for grilling. Manual control of humidity in cooking chamber. Electronic sensor for precise temperature control.
Buy Electrolux Professional MCQMEAJCVO Modular Cooking Range Line thermaline 90 - 4-Burner Gas Top with Ecoflam on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593350) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MCQMEAJCVO
- Weight: 173 kg
- Net Weight: 1000 mm
- Net Depth: 900 mm
- Net Height: 700 mm
- Data Sheet: thermaline 90 - 4-Burner Gas Top with Ecoflam on Static Gas Oven, 1 Side, H=700 (Town Gas)
- Brochure: thermaline M2M - Made to Measure
- Range Overview: thermaline Modular 90
- CAD Drawings: 593350
- Spare Parts Catalogue: 593350
- BIM/Revit: 593350
Electrolux Professional MCQMEAJCVO 4-Burner Gas Top with Ecoflam on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593350)
Fuel efficiency doesn't have to mean sacrificing burner count or oven capacity, it just means the equipment should stop burning gas when nobody's using it. The Electrolux Professional MCQMEAJCVO 4-Burner Gas Top with Ecoflam on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593350) does that with Ecoflam pan detection built into all four town gas burners, dialing output down whenever cookware leaves the flame and back up the moment it returns.
The burners themselves are triple-ring Flower Flame units, tuning combustion to the pan sitting on top rather than running one flame pattern for every size, with a flame failure device backing each one in case a flame goes out on its own. Below, the static oven takes 2/1 GN trays on two runner levels up to 300 °C, and the upper heating element flips over to grilling duty when the menu needs it. One-side operation and THERMODUL joins let this unit sit mid-line without a backsplash getting in the way of connections.
Key features
- 4 gas burners, patented Flower Flame design (EP2708813B1);
- Ecoflam pan detection reduces gas use and kitchen heat when cookware is lifted;
- Flame failure device and thermocouple safety valve on each burner;
- Manual gas valves for precise flame intensity control;
- Large cast-iron pan supports with long center fins;
- Deep flat spillage tray with rounded corners and drain hole;
- Static gas oven below, up to 300 °C;
- Oven chamber with 2 runner levels for 2/1 GN trays;
- Manual oven shut-off valve, 40 mm insulated oven door;
- 2 mm AISI 304 stainless steel top, DIN 18860-2 construction;
- THERMODUL connection system for seamless joins between units;
- IPX5 water resistance rating.
Electrolux Professional MCQMEAJCVO 4-Burner Gas Top with Ecoflam on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593350) Price
Maran Projekt GmbH quotes the Electrolux Professional MCQMEAJCVO 4-Burner Gas Top with Ecoflam on Static Gas Oven, 1 Side, H=700 (Town Gas) (Code 593350) price for kitchens ready to cut fuel waste without dropping cooking capacity, delivered anywhere in the world.
We're specialists in Electrolux Professional equipment, authorized dealers for over 25 years, and glad to talk through where Ecoflam pays off fastest in your kitchen layout. Correspondence is available in English, German and other languages by request, plus a free equipment manual with every order.
