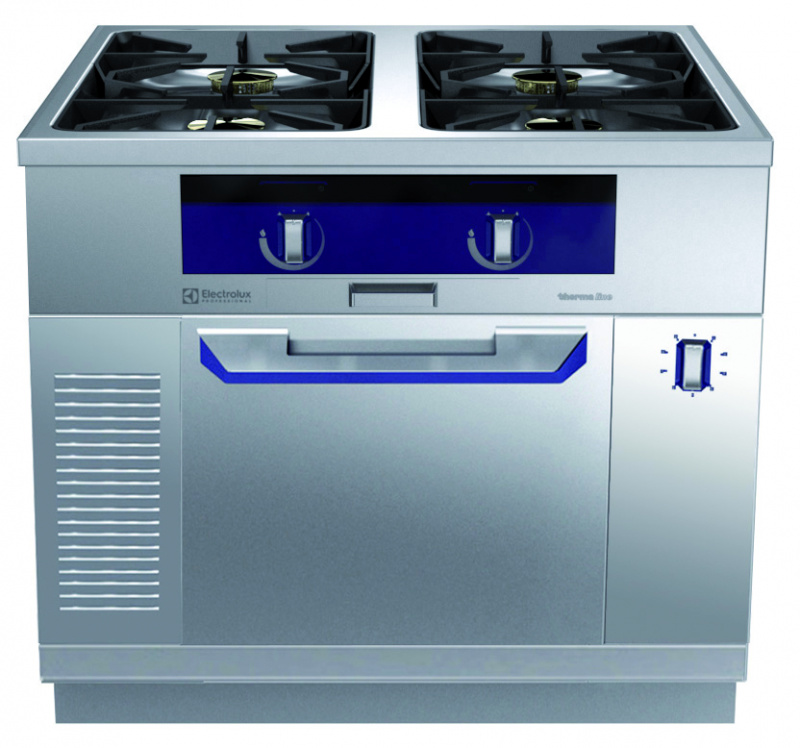

Electrolux Professional MCQNECJCVO GAS TOP,4B,TG,ECO,STA.O.G,2S,1000X900X7 (Code 593347)
4-Burner gas Top on passthrough gas static Oven, ecoflam, two-side operated, town gas - Hong Kong, Sweden. Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth. THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service. Oven chamber to have 2 levels of runners to accommodate 2/1 GN trays and ribbed enamelled steel base plate. The upper heating element of the oven can also be used for grilling. Manual control of humidity in cooking chamber. Electronic sensor for precise temperature control.
Buy Electrolux Professional MCQNECJCVO Modular Cooking Range Line thermaline 90 - 4-Burner Gas Top with Ecoflam on Passthrough Static Gas Oven, 2 Sides, H=700 (Town G (Code 593347) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MCQNECJCVO
- Weight: 173 kg
- Net Weight: 1000 mm
- Net Depth: 900 mm
- Net Height: 700 mm
- Data Sheet: thermaline 90 - 4-Burner Gas Top with Ecoflam on Passthrough Static Gas Oven, 2 Sides, H=700 (Town G
- Brochure: thermaline M2M - Made to Measure
- Range Overview: thermaline Modular 90
- CAD Drawings: 593347
- Spare Parts Catalogue: 593347
- BIM/Revit: 593347
Electrolux Professional MCQNECJCVO 4-Burner Gas Top with Ecoflam on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas) (Code 593347)
A gas burner left running under an empty grate wastes fuel and heats up a kitchen that's already hot enough during service. The Electrolux Professional MCQNECJCVO 4-Burner Gas Top with Ecoflam on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas) (Code 593347) closes that gap with Ecoflam pan detection, four town gas burners that step down automatically once a pot or pan is lifted off, sitting on a passthrough oven accessible from both sides for island installations.
The burners themselves are the same triple-ring Flower Flame design used across the range, matching flame shape to the cookware set on top, and each carries a flame failure device that shuts gas supply the moment a flame goes out unintentionally. Underneath, the static oven runs to 300 °C across two runner levels for 2/1 GN trays, with manual humidity control and an upper element that switches to grilling when needed. Two-side operation and THERMODUL joins mean the unit reads from either side of an island run without a seam catching debris.
Specifications
- 4 gas burners, patented Flower Flame design (EP2708813B1);
- Ecoflam pan detection reduces gas use and kitchen heat when cookware is lifted;
- Flame failure device and thermocouple safety valve on each burner;
- Manual gas valves for precise flame intensity control;
- Large cast-iron pan supports with long center fins;
- Deep flat spillage tray with rounded corners and drain hole;
- Static gas oven below, up to 300 °C;
- Oven chamber with 2 runner levels for 2/1 GN trays;
- Manual oven shut-off valve, 40 mm insulated oven door;
- Passthrough, two-side operated configuration;
- 2 mm AISI 304 stainless steel top, DIN 18860-2 construction;
- THERMODUL connection system for seamless joins between units;
- IPX5 water resistance rating.
Electrolux Professional MCQNECJCVO 4-Burner Gas Top with Ecoflam on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas) (Code 593347) Price
Maran Projekt GmbH offers the Electrolux Professional MCQNECJCVO 4-Burner Gas Top with Ecoflam on Passthrough Static Gas Oven, 2 Sides, H=700 (Town Gas) (Code 593347) price for kitchens looking to cut gas costs on an island station, with shipping arranged worldwide.
As Electrolux Professional dealers for more than 25 years, we can explain exactly how much a pan-detection burner saves over a standard one before you order. We answer in English and German, other languages on request, and send a free equipment manual along with any quote.
