Electrolux Professional MCLDAAJODM Modular Cooking Range Line thermaline 90 - 4 Zone Electric Solid Top with Ecotop, 1 Side-Marine (Code 589872)
Electric Solid Top, 4 zones, ecoTop coating, one-side operated - Marine. Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth. THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service. Cooking plate and base joint profile guarantee against soil infiltration.
Buy Electrolux Professional MCLDAAJODM Modular Cooking Range Line thermaline 90 - 4 Zone Electric Solid Top with Ecotop, 1 Side-Marine (Code 589872) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MCLDAAJODM
- Weight: 160 kg
- Country of origin: Switzerland
- Net Width: 1000 mm
- Net Depth: 900 mm
- Net Height: 250 mm
- Voltage: 440 V/3 ph/50/60 Hz
- Total Watts: 16 kW
- Current consumption: 26 Amps
Upon Request

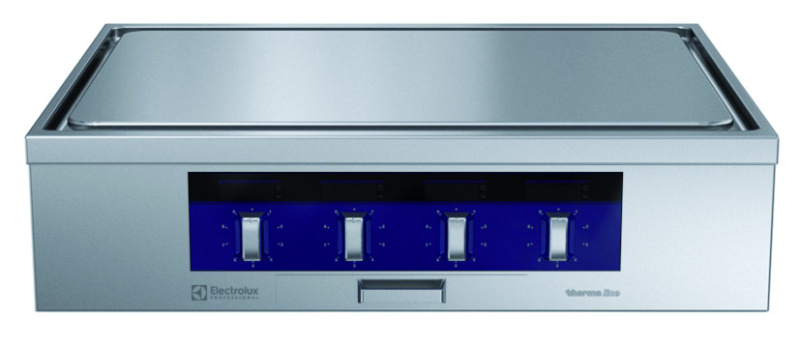

Electrolux Professional MCLDAAJODM 4 Zone Electric Solid Top with Ecotop, 1 Side-Marine (Code 589872)
Vessel galleys run on modular thinking: build the exact cooking line the crew needs, station by station, instead of squeezing a fixed range into an awkward space. The Electrolux Professional MCLDAAJODM 4 Zone Electric Solid Top with Ecotop, 1 Side-Marine (Code 589872) is one of those building blocks, a four-zone solid top rated for marine service that bolts onto a base supplied separately by the factory. One-side operation keeps the control panel on a single edge, useful when the unit backs onto a bulkhead or another station.
The ecoTop surface is 20 mm of nickel-coated steel, chosen because it holds heat rather than bleeding it out every time a pan lands or lifts. Each of the four zones has its own pair of electronic sensors watching surface temperature, and the whole top carries IPX5 water resistance for the washdown routines standard on a working vessel. THERMODUL joins let this unit line up flush against the next module in the run, so grease and liquids stay on the surface instead of finding their way into the seams.
Specifications
- 4 independently controlled electric heating zones, 100–450 °C;
- 20 mm thick ecoTop nickel-coated steel surface (DIN 1.7335);
- 2 electronic sensors per zone for surface temperature control;
- 8 power levels per zone;
- Rapid plate heat-up, continuously ready for use;
- Overheat protection cuts power automatically;
- Standby function for energy saving and fast power recovery;
- One-side operated configuration, base supplied separately;
- 2 mm AISI 304 stainless steel top, DIN 18860-2 construction;
- THERMODUL connection system for seamless joins between units;
- Metal knobs with soft-touch silicone grip;
- IPX5 water resistance rating;
- 16 kW total electrical power, 440 V/3ph/50-60 Hz.
Electrolux Professional MCLDAAJODM 4 Zone Electric Solid Top with Ecotop, 1 Side-Marine (Code 589872) Price
Maran Projekt GmbH quotes the Electrolux Professional MCLDAAJODM 4 Zone Electric Solid Top with Ecotop, 1 Side-Marine (Code 589872) price for shipyards, fleet operators and land-based kitchens, with delivery organized worldwide.
We correspond in English and German day to day and can switch to most other languages once a customer asks. More than 1,500 clients across six continents have ordered through us over our 25 years as an authorized Electrolux Professional dealer, and we send the equipment manual free of charge whenever a client wants to check specifications before ordering.
